DJI M400 Tethered Power System
DJI M400 Tethered Power System
Couldn't load pickup availability

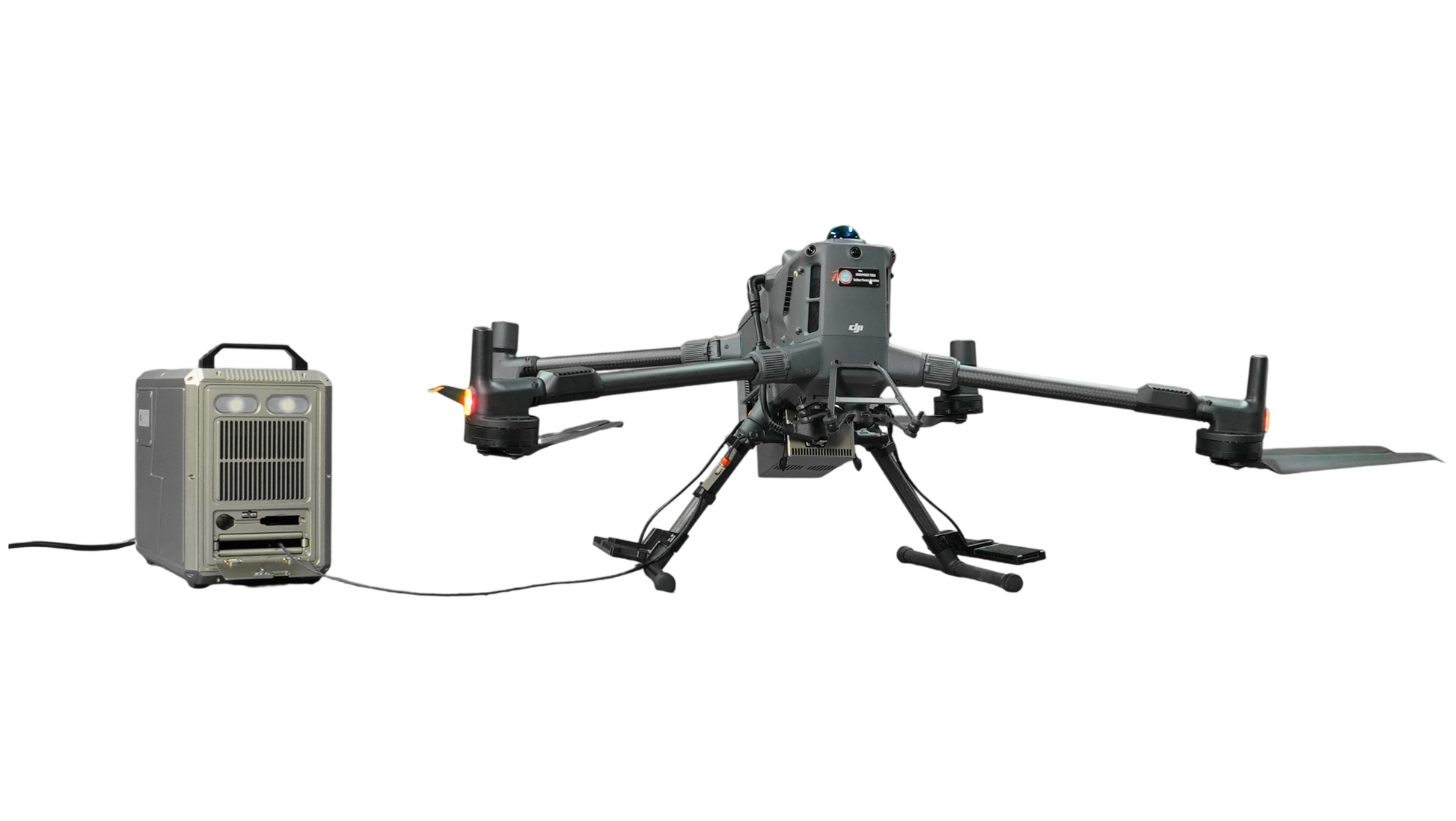

The WasherDrone M400 Tethered Power System feeds uninterrupted ground power to a DJI Matrice 400 through a single lightweight tether, removing the endurance ceiling that limits battery-powered cleaning flight. A ground module converts mains AC to high-voltage DC and sends it up a 2.85 mm conductor; an onboard air module steps it down to a constant 51.6 V, so the drone battery stays full as a landing reserve rather than a flight-time limit.
Key benefits
- No endurance ceiling. Flight time is set by the mission, not by battery capacity.
- Battery protected. Constant-voltage delivery avoids charge/discharge cycling and capacity loss.
- Hands-free winch. Adaptive-torque reel follows take-off and landing automatically.
- Power-loss safe. On a supply cut the system switches to backup and retracts the cable.
- Field-ready. IP-rated modules, −20 to 45 °C range, 4.3-inch live telemetry display.
- CE certified. LVD + EMC certification; CNAS third-party tested.
How it works
Power travels up thin, light, high-voltage DC and is converted at the drone — the reason the tether stays light enough for agile cleaning flight.

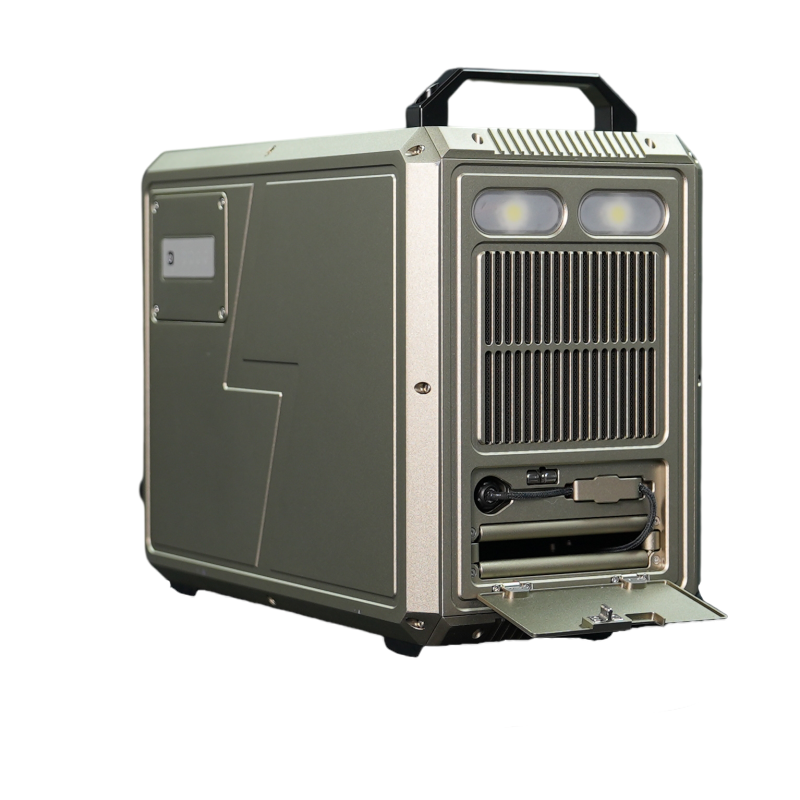

- Ground module: Wide-range single-phase mains in; 700–750 V DC out, up to 3500 W.
- Tether: 2.85 mm cable carries DC power to the drone.

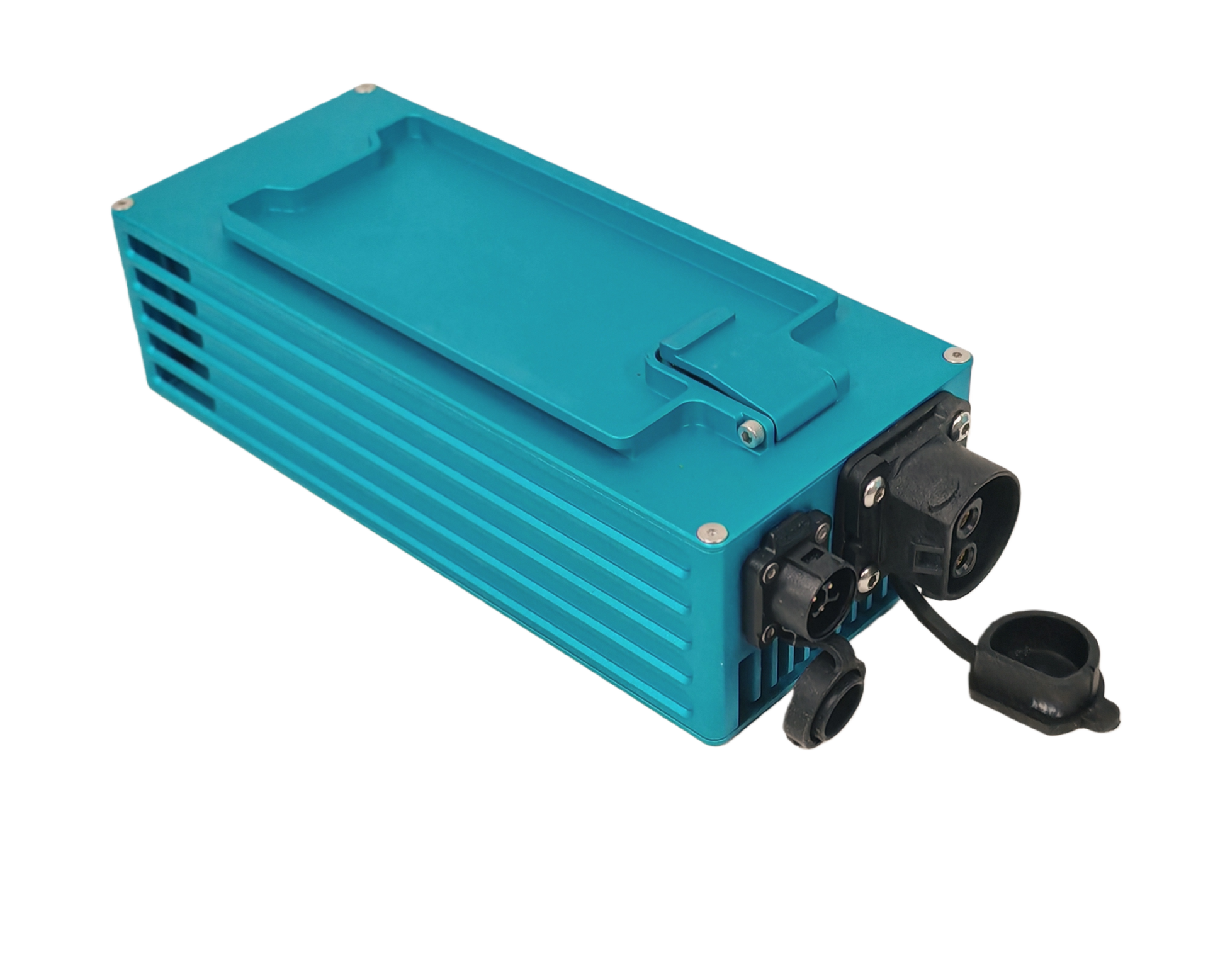

- Air module: Steps down to a constant 51.6 V; backup battery held full for landing.
Specifications
| System | |
| Drone compatibility | DJI Matrice 400 (only) |
| Cable length | 55 m / 110 m (optional 55–300 m) |
| Operating temp. | −20 to 45 °C |
| Certification | CE (LVD+EMC); CNAS tested |
| Ground module | |
| Input | 190–240 V AC, 1-phase, 50/60 Hz |
| Output | 700–750 V DC, adjustable |
| Output power | ≤ 3500 W continuous |
| Winch speed | 0–2 m/s, adjustable |
| Winch tension | 0–15 N, adjustable |
| Protection | IPx4 |
| Display | 4.3-inch touchscreen |
| Weight | 12.5 kg (incl. 110 m cable) |
| Air module | |
| Input | 580–810 V DC |
| Output | 51.6 V DC, constant |
| Output power | 3000 W continuous |
| Protection | IP54 |
| Mount | Quick-release rail |
| Weight | 850 g |
| Tether cable | |
| Outer diameter | 2.85 mm |
| Weight | 12 g/m |
| Rated current | 5 A |
| Insulation | ≤ 2000 V DC tested |
| Packaging & options | |
| Case | Aviation hard case, 550×450×450 mm |
| Ship weight | 23–24 kg |
| Lighting | 800 W (optional) |
| Comms | USB-C / Bluetooth 5.0 (GCS ↔ station) |
Models
- TPS55M — 55 m tether (Compact range)
- TPS110M — 110 m tether (Standard high-rise)
- Custom — up to 300 m (On request)
What’s included
- Ground power module
- Air module
- Selected tether length
- Aviation hard case
Before you deploy
Continuous operation. The system is built for round-the-clock flight. Sustained flight time depends on the drone's structural and electrical limits under cleaning payload and should be validated for your configuration.
High-voltage tether. Route the cable clear of the spray zone, keep it dry, and inspect for wear before each deployment.
Wear part. The tether cable is a consumable and is not covered by warranty.
Requires a DJI Matrice 400. The system powers an M400; it is not a standalone unit.
Shipping and customs duties are not included. Requires a DJI Matrice 400 (not included).
